USB-C Triple Display DP Alt. Mode Docking Station - MA3 with 100W Power Delivery (Laptop Charging) - 2 x DP and 1 x HDMI with up to 4K 60Hz Support

SKU: DUCMA3
Sale price$215.95 Regular price$239.95
Save 10%

HOLIDAY SALE 🛍 | Discount Auto-Applied in CheckOut

2-Year Limited Warranty

Based In Australia

14-Day Returns

Free Freight Over $50

Secure Checkout

Expert support

User Manual
Specification Sheet
UP2QC10AWA-SGR

Triple Display

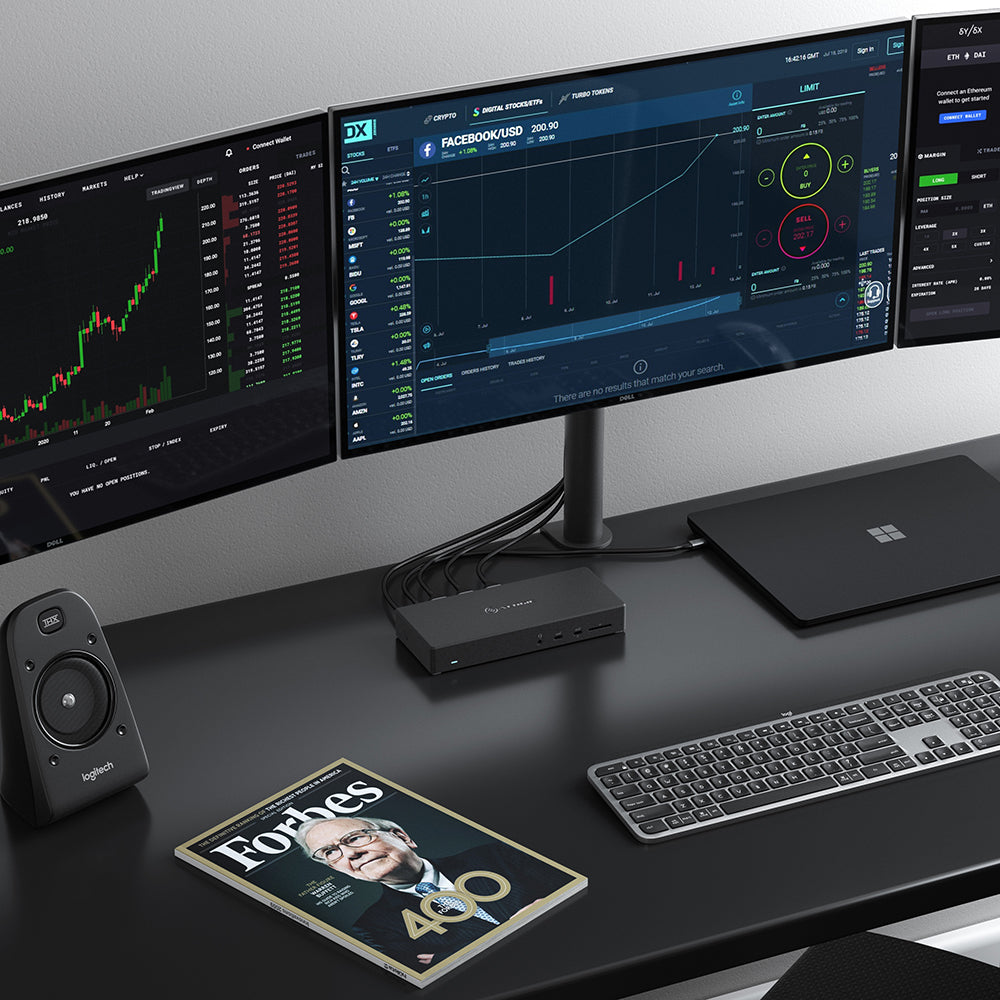

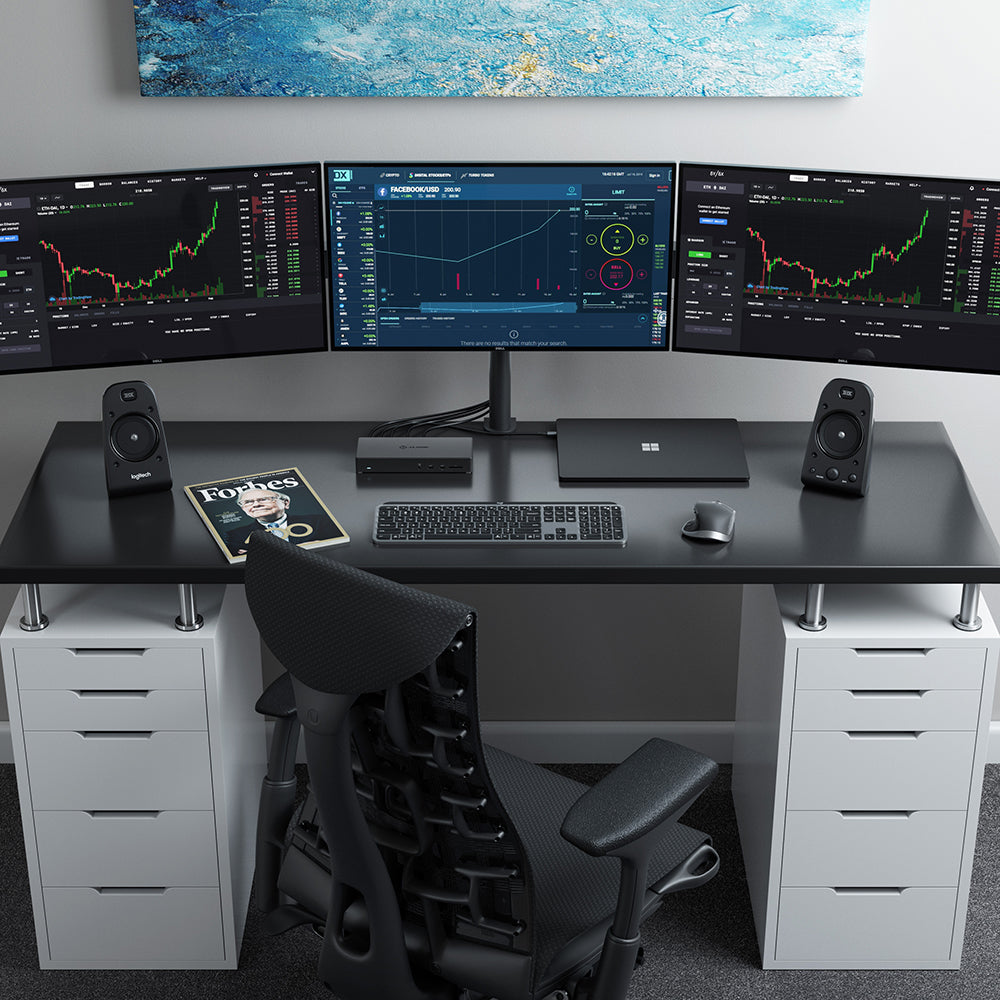

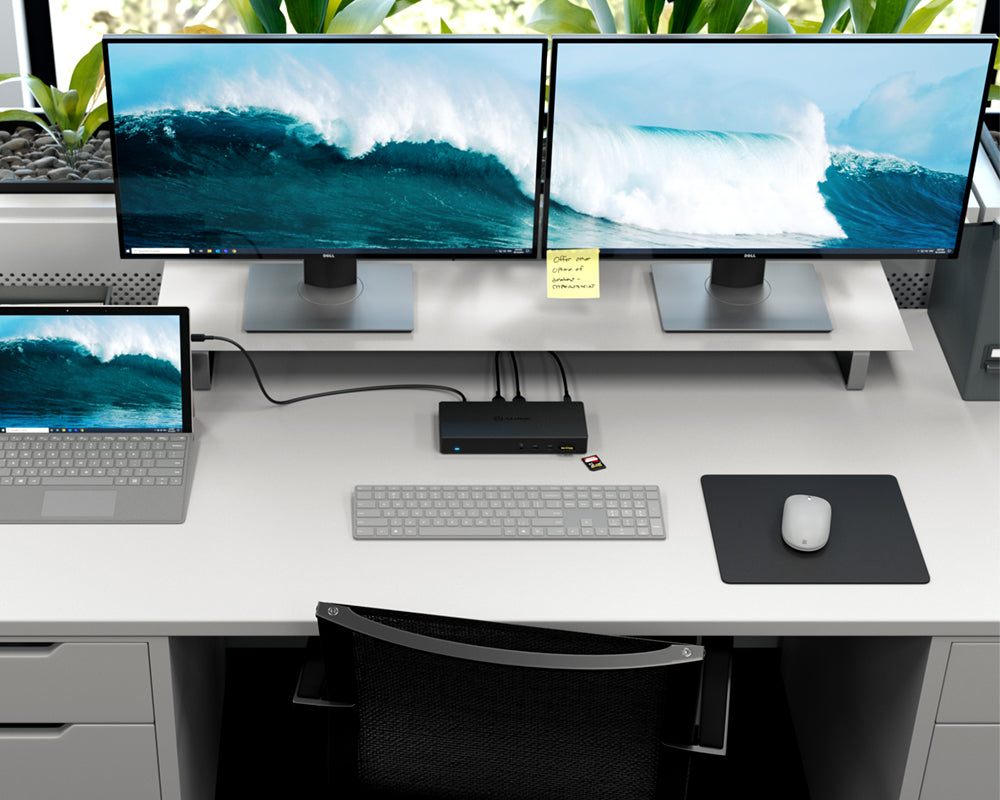

The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop. *Refer to the resolution support table for details on different resolutions supported with the dock.

Comprehensive Connectivity

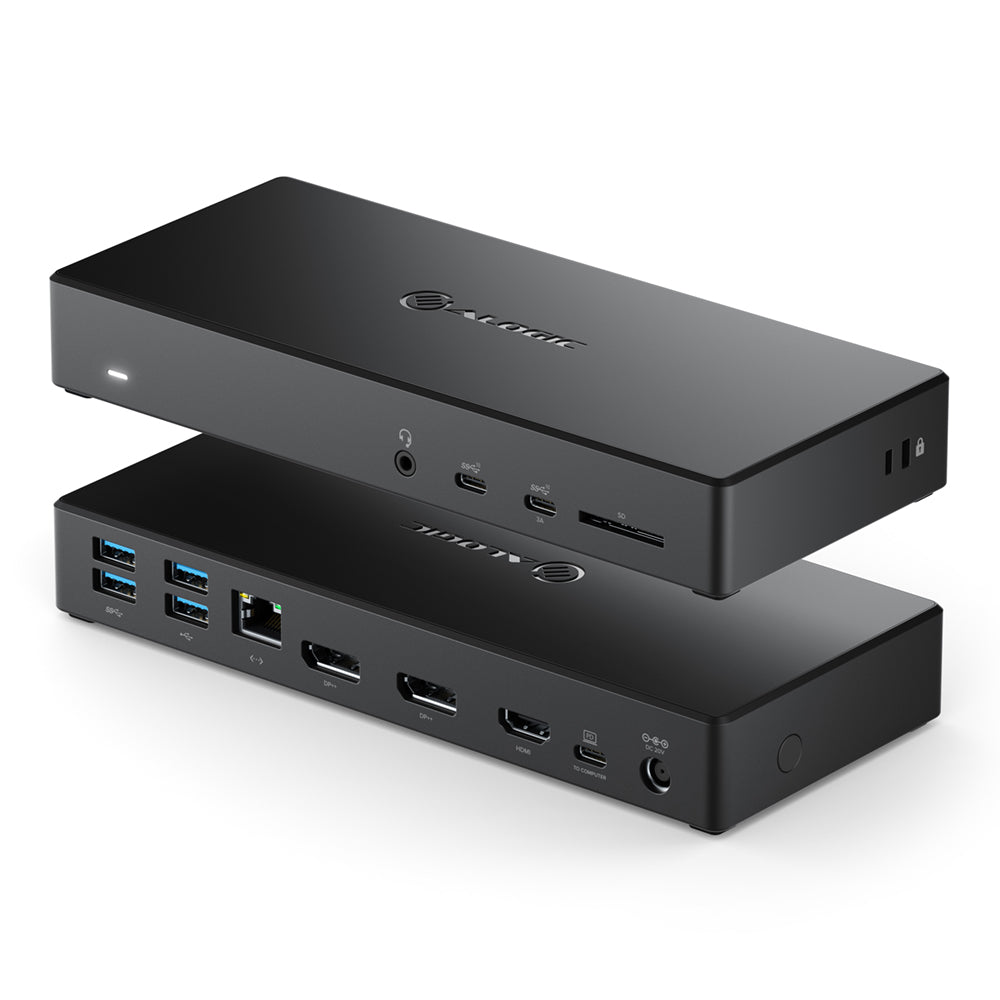

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card. The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment. *Refer to the resolution support table for details on different resolutions supported with the dock.

UP2QC10AWA-SGR

100W Laptop Charging/Power Delivery

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.

Specifications
  • Part No.: DUCMA3
  • Physical Characteristics: Product Dimensions: 210 x 30 x 90mm (L x W x H)
  • Colour: Black
  • Weight (product): 360g
  • Materials: ABS
  • Warranty: 2 Years

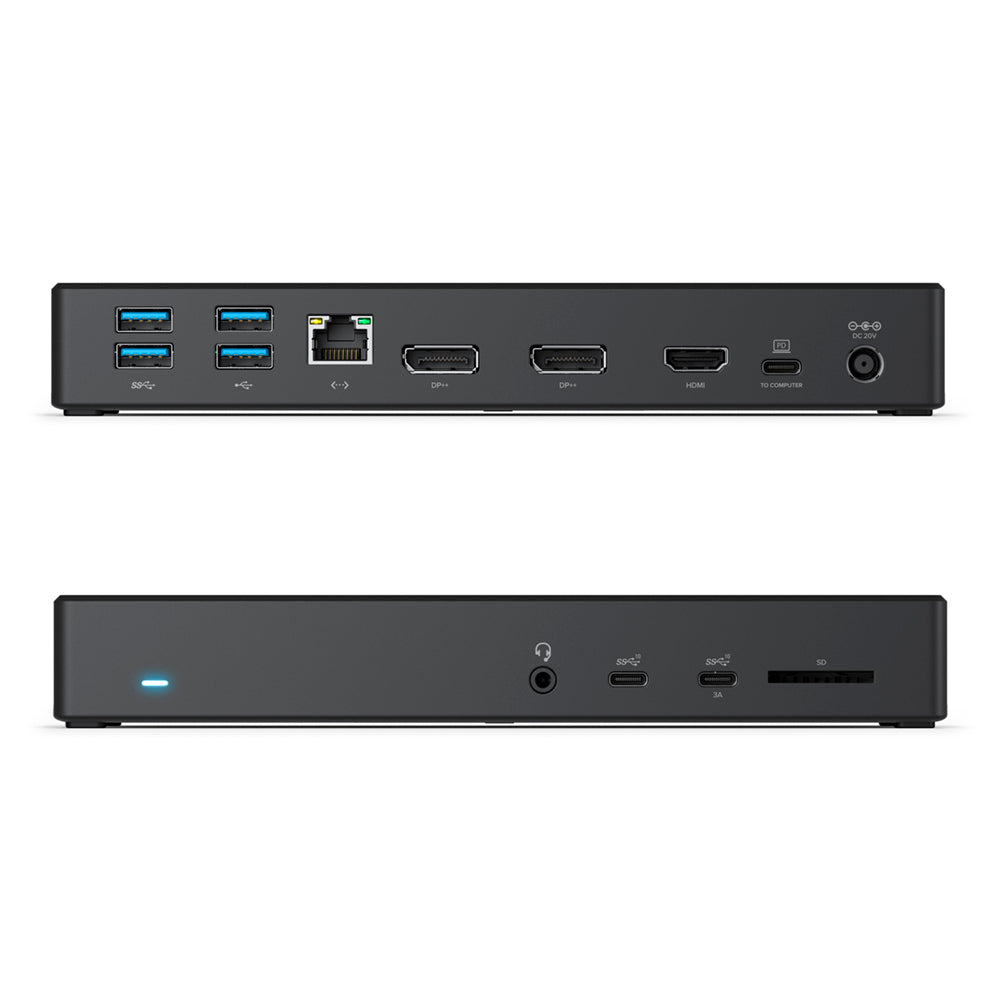

  • Output: 2 x DisplayPort, 1 x HDMI2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support2 x USB-A 3.1 Gen1 (5G)2 x USB-A 2.01 x Audio / Microphone Jack 1 x RJ45 Ethernet 1Gbps1 x SD Card
  • Input: 1 x USB-C Port
  • Power: Up to 100W Power Delivery for Laptop Charging (170W AC Power Adapter Included in the box)
  • Resolution: Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4HBR3 with DSC enabled host**See resolution support tables below for maximum outputs
  • Package Includes: 1 x Dock1 x 170W AC Power Adapter1 x US; 1 x UK; 1 x EU; 1 x AU Power Cord1 x User Manual
  • Device Compatibility: Compatible with all computers with a USB-C port (Windows 7 or newer, Mac or Chromebook)
  • Compliance: FCC, CE, RoHS
  • Barcode (EAN): 9350784022431
Downloads
User Manual
Specification Sheet
