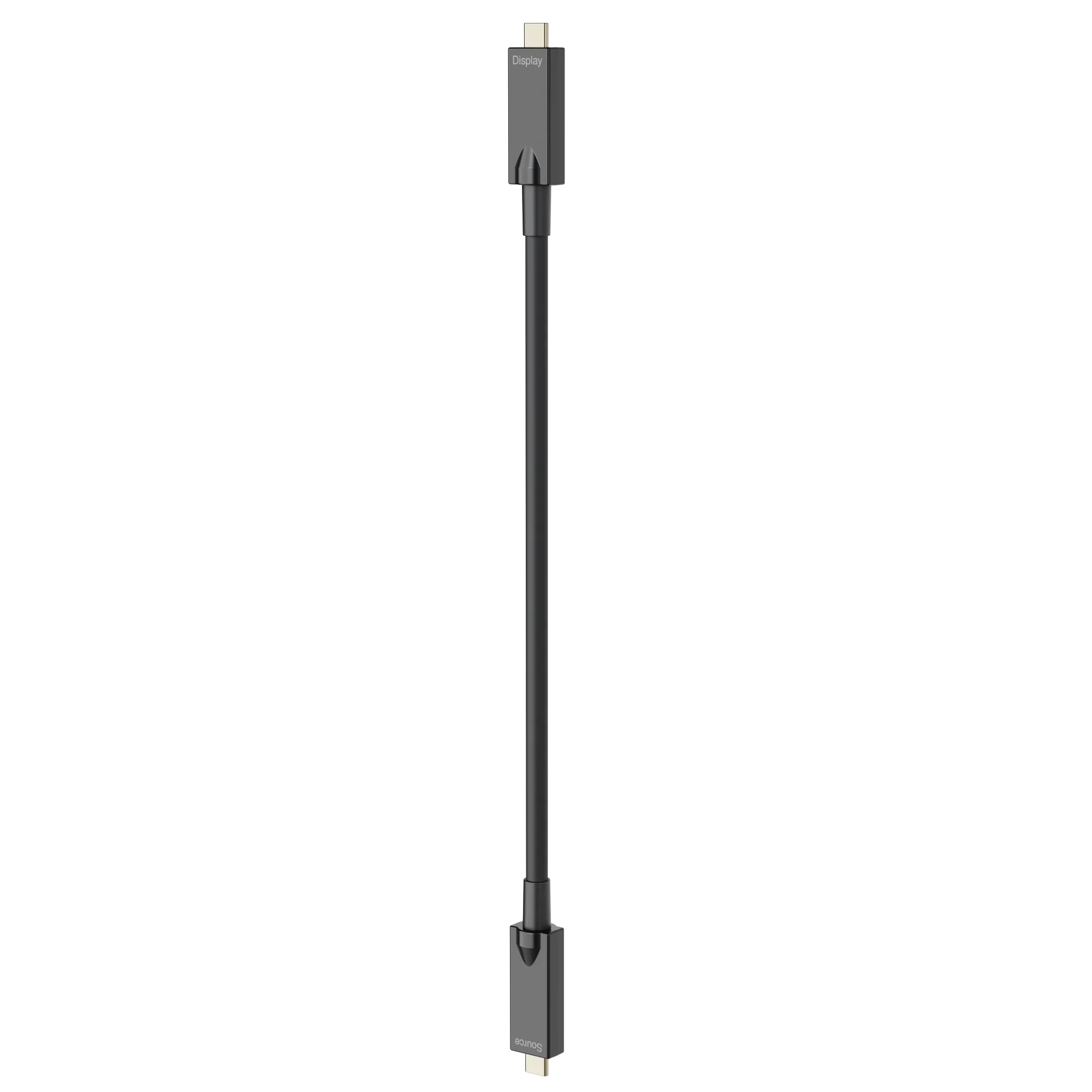

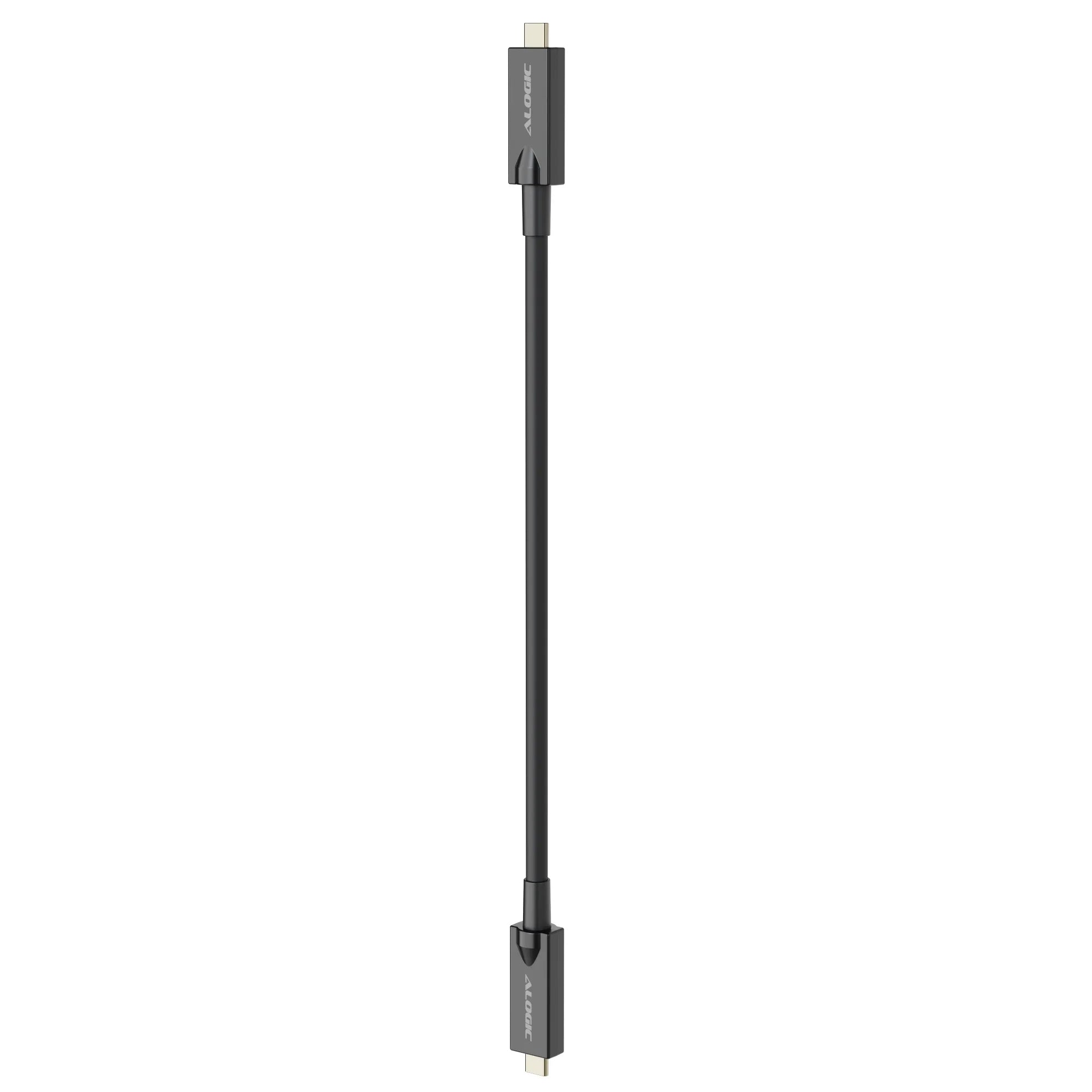

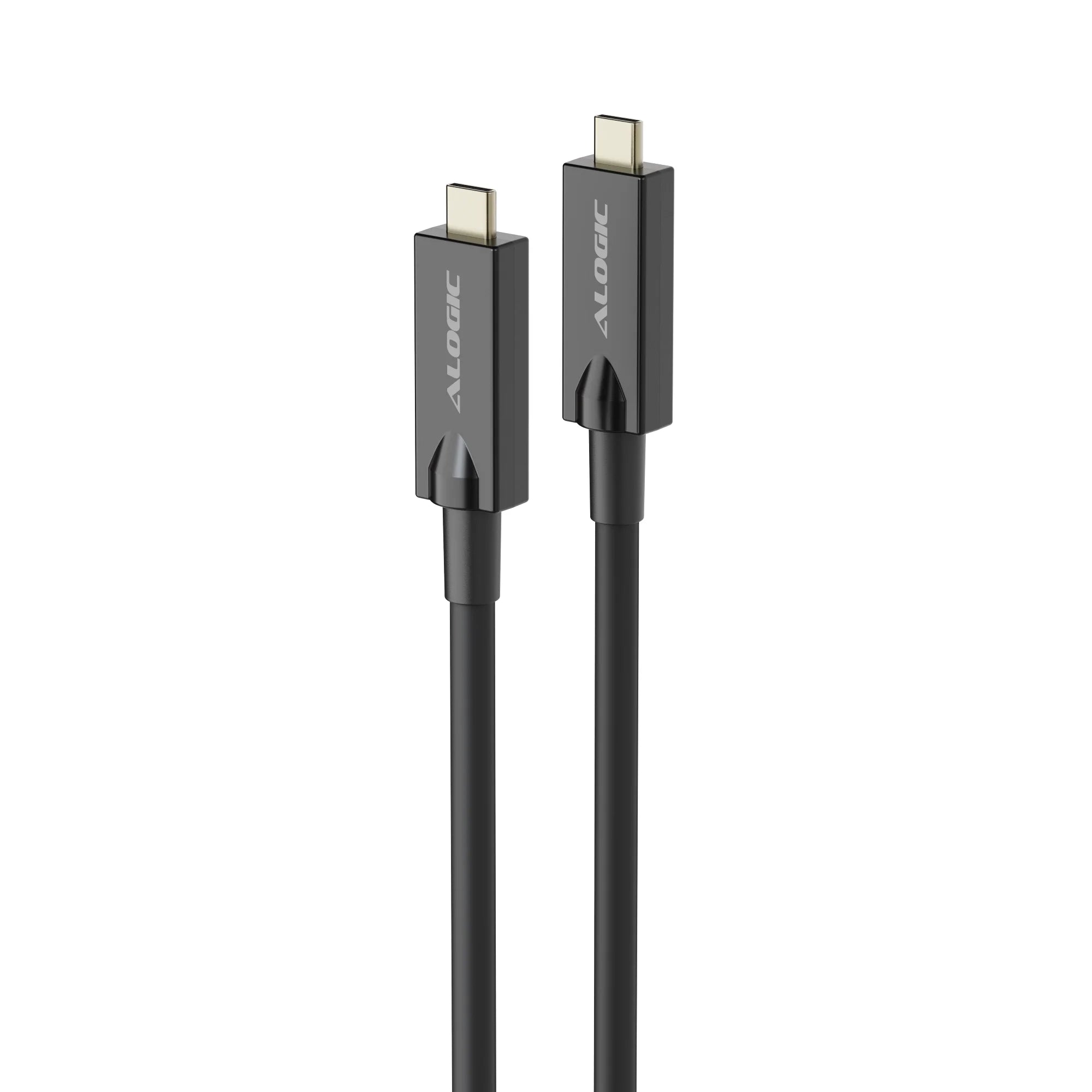

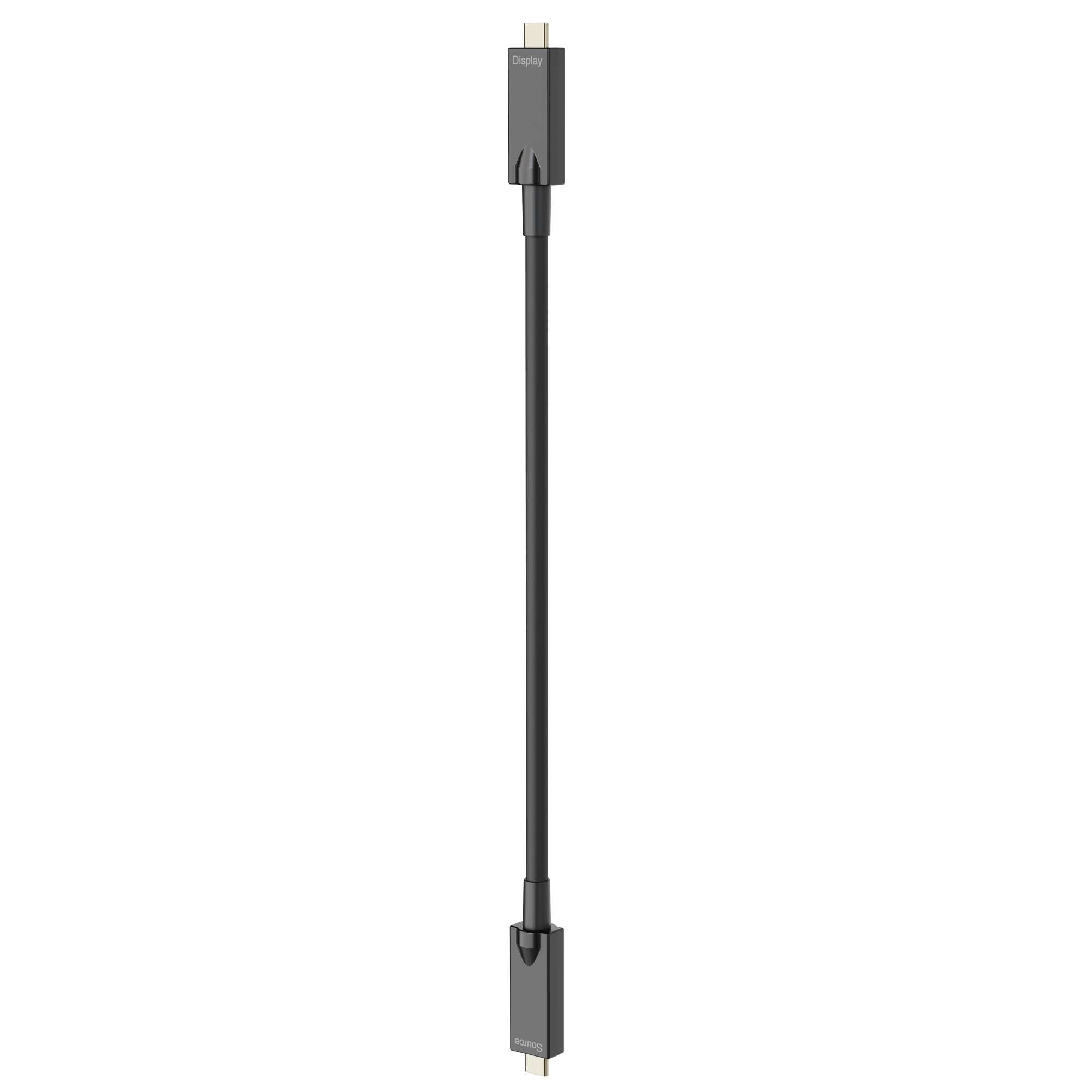

USB-C Hybrid Active Optical Cable with Data, Video and Power Support
USB-C Hybrid Active Optical Cable with Data, Video and Power Support
USB-C Hybrid Active Optical Cable with Data, Video and Power Support

USB-C Hybrid Active Optical Cable with Data, Video and Power Support

SKU: U3-TCC05-MM-H
Length: 5m
Sale price$224.25 Regular price$299.00
Save 25%

HOLIDAY SALE 🛍 | Discount Auto-Applied in CheckOut

2-Year Limited Warranty

Based In Australia

14-Day Returns

Free Freight Over $50

Secure Checkout

Expert support

User Manual
Specification Sheet

__Go beyond the boundaries of USB-C with ALOGIC hybrid active optical USB-C cables. _These cables allow you to connect peripherals, send video, transfer USB 3.2 data and even power devices at distances up to 10x further than traditional copper cables._

Full Featured Connectivity

Unlike most USB-C extension cables, we've engineered these cables to support all USB-C functionality including data, video and USB Power Delivery power transfer.

Up to 4K
Output

USB 3.2 Gen 2 &
USB 2.0 Compatible

60W USB
PD Charging

USB 3.2
Data Transfer

Beware of imitations and other products that only support data or video and aren't full featured USB-C cables.

Stunning 4K Video

Designed for modern presentation, conferencing and creative applications, these cables support DP1.4 video signals providing full 4K ultra high definition resolution pictures.

Designed for
Permanent Installations

Designed for modern presentation, conferencing and creative applications, these cables support DP1.4 video signals providing full 4K ultra high definition resolution pictures.

Applications

Education and Meeting Spaces

Digital Signage

Interactive Touch Displays

Video Conferencing

Machine Vision

Digital Photography

Retail Automation/Point of Sale
Systems

Zero-Client Computing

Remote Consoles

Specifications
  • Part No.: U3-TCC05-MM-H | U3-TCC10-MM-H | U3-TCC15-MM-H
  • Input: 1 x USB Type C Male Connector
  • Output: 1 x USB Type C Male Connector

Signals Supported

  • Data: USB 3.2 Gen 2x1, 10Gbps + USB 2.0
  • Video: DisplayPort 1.4 (2 Lane)
  • Power: USB Power Delivery (PD) up to 20V 3A / 60W max
  • Power Supply: Cable power supplied by host V­conn, 1100mW typical power consumption
  • Video Resolution: Supports resolution and refresh rate combinations supported by DisplayPort 1.4 2 lane connections up to 4K (3840x2160) at 60Hz

Physical Characteristics

  • Cable Length: U3-TCC05-MM-H - 5m
    U3-TCC10-MM-H - 10m
    U3-TCC15-MM-H - 15m
  • Colour: Space Grey and Black
  • Weight (product): 430/720/1260g approx. (5/10/15m)
  • Connector Material: Zinc alloy housings
  • Cable Construction: Copper + multimode optical fibre hybrid construction
  • Cable Shielding: PE + Kevlar/Cotton + Aluminium Mylar triple shielding
  • Cable Sheathe: TPE

Installation Characteristics

  • Connector Dimensions: 39x15mm
  • Cable Outer Diameter: 6.5+/- 0.3mm
  • Minimum Bend Radius: 60mm
  • Cable Pulling/Tensile Strength: 15kg (150N absolute maximum rating)
  • Directional Installation: This cable can be used for data and power transfer in both directions. The cable is designed to pass video signals in a single direction; care should be taken to install the cable in the correct orientation in applications where video transfer is required.
  • Environmental Characteristics: Operating and Storage Temperature: -10°C to +50°C | Operating and Storage Humidity10% to 85% RH (no condensation)
  • Package Includes: 1 x USB-C Hybrid Optical Cable, Male to Male
    1 x User Manual
  • Device Compatibility: USB-C port on the computer that the device is connected to must support USB Power Delivery charging up to 60W maximum for charging to work.
  • Compliance: FCC, CE, UKCA, RoHS
  • Warranty: 2 Year warranty for electrical failure.
  • Barcode(EAN): U3-TCC05-MM-H | 9350784100320
    U3-TCC10-MM-H | 9350784100344
    U3-TCC15-MM-H | 9350784100351
