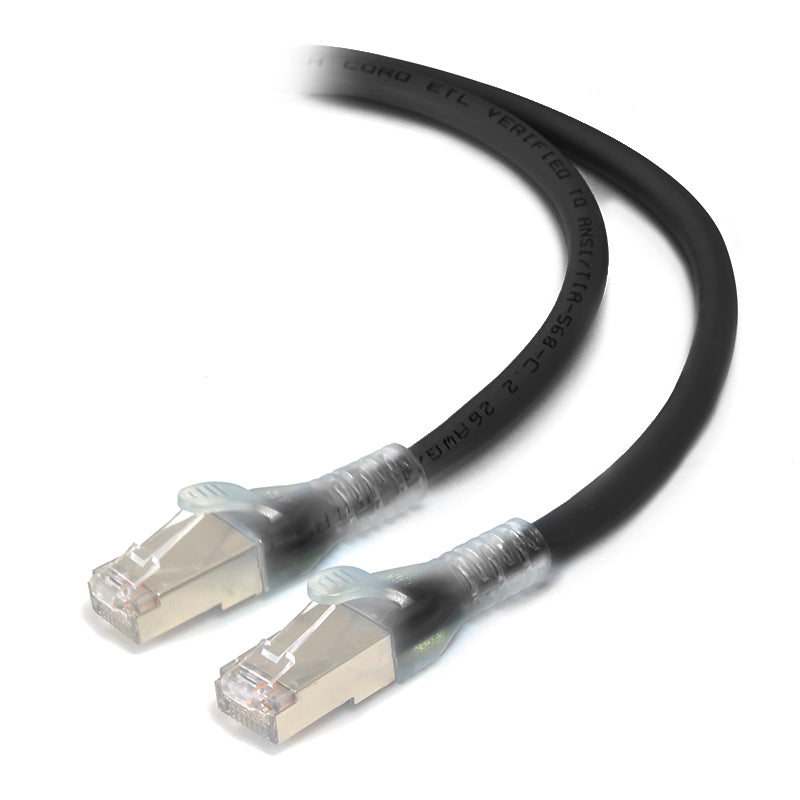

Black Shielded CAT6A LSZH Network Cable

SKU: C6A-0.3-Black-SH
Length: 0.3m
Sale price$8.45
2-Year Limited Warranty

Based In Australia

14-Day Returns

Free Freight Over $50

Secure Checkout

Expert support

ALOGIC CAT6a shielded snagless patch cables are designed to meet and exceed the requirements for the next generation 10GBASE-T applications. The ALOGIC CAT6a cabling system provides an End to End solution that provides a guaranteed 750 Mhz of usable bandwidth. The ALOGIC CAT6a solution consists of Pre-terminated Cables, Patch Panels, Modular Jacks, Connectors and Bulk Installation Cables.

Black Shielded CAT6A LSZH Network Cable

Features

  • Connect Your Ethernet Devices
  • Performance rated for 750 MHz bandwidth.
  • Suitable for up to 10G LANs, include 10GBASE-T Ethernet, 1000BASE-TX Fast Ethernet, & Lower.
  • Each twisted pair in the cable is individually wrapped in aluminum foil Mylar (100% Coverage).
  • Overall Copper Braided Shielded.
  • Comes with LSZH (Low Smoke Zero Halogen) Jacket.
  • Category 6A SFTP cable wired straight through. 26 AWG, gold plated 8x8 (RJ45) plugs.
  • Suppresses ANEXT (Alien Near End Cross Talk) and delivers superior 10GbE performance up to 100mt.
  • Warranty: Lifetime

Specifications
  • SKU: C6A-XX-Black-SH
  • Barcode (EAN):
  • Standard: Category 6a TIA/EIA-568C-2.1
  • Temperature Rating: 75°C
  • Voltage Rating: 30V
  • Input: 8P8C (RJ45)
  • Connector: 50 micron gold-plated RJ45
  • Conductor Type: 26AWG (7/0.16), Stranded Bare Copper
  • Jacket: LSZH (Low Smoke Zero Halogen)
  • Compliance: A-Tick, ETL, UL, IEEE, RoHS Compliant
  • Warranty: 2 Years
