ALOGIC Quad 4K Display Thunderbolt Hybrid Universal Docking Station – DU4

SKU: TB4DU4
Sale price$529.95
2-Year Limited Warranty

Based In Australia

14-Day Returns

Free Freight Over $50

Secure Checkout

Expert support

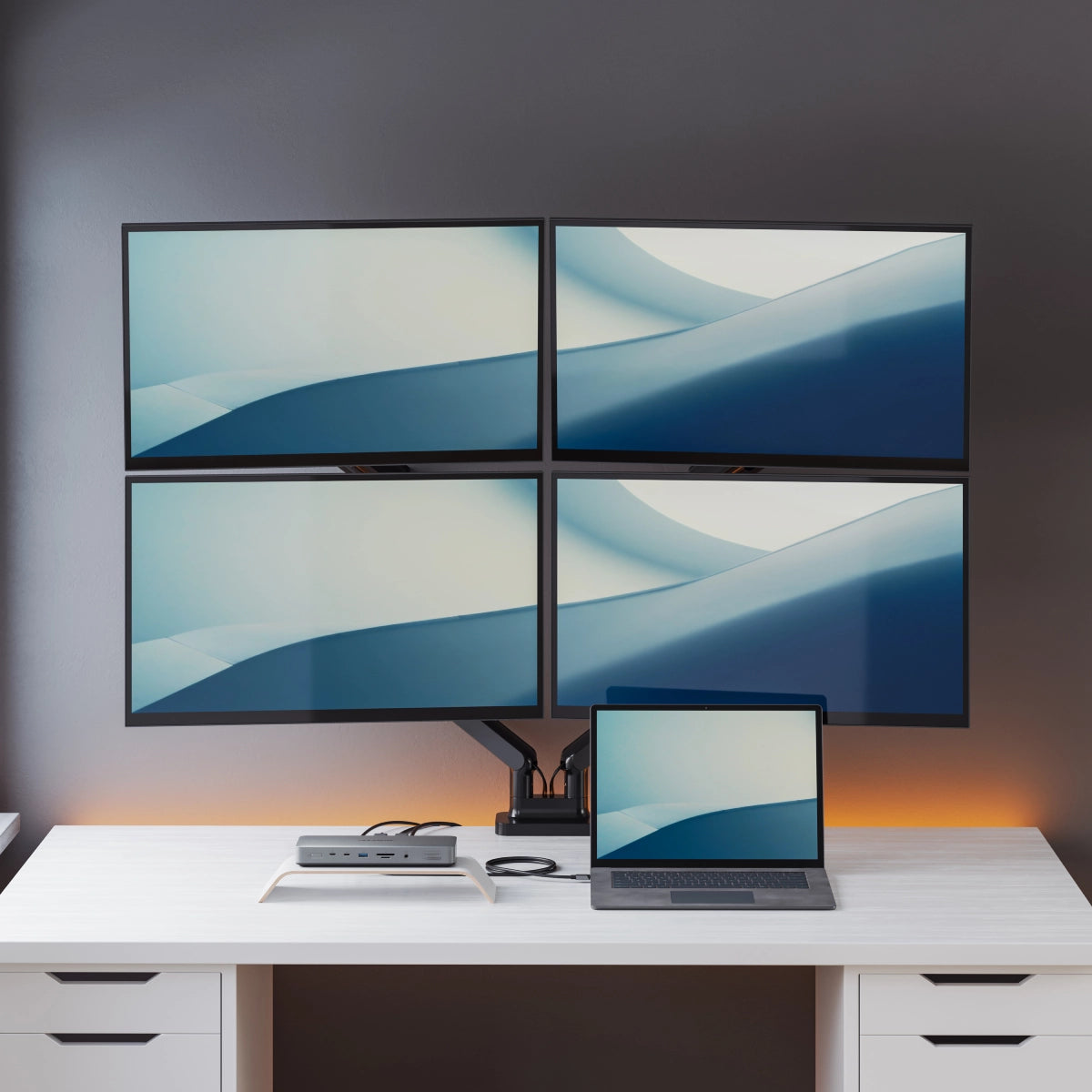

Quad Display –
Up to 4K x 4

When linked to a computer that supports Thunderbolt (or many USB4 machines) the DU4 dock can connect up to four external displays in flexible combinations of the 2x HDMI, 3x DisplayPort and 2x Thunderbolt downstream ports*.

The DU4 dock will also connect up to three displays to laptops that don’t support Thunderbolt.

* The available number of outputs and maximum resolutions are dependent on the capabilities of the computer used with the docking station. Refer to the resolution support table for full details on the output capabilities of computers based on their specifications.

thunderbold-img-1
thunderbolt-2

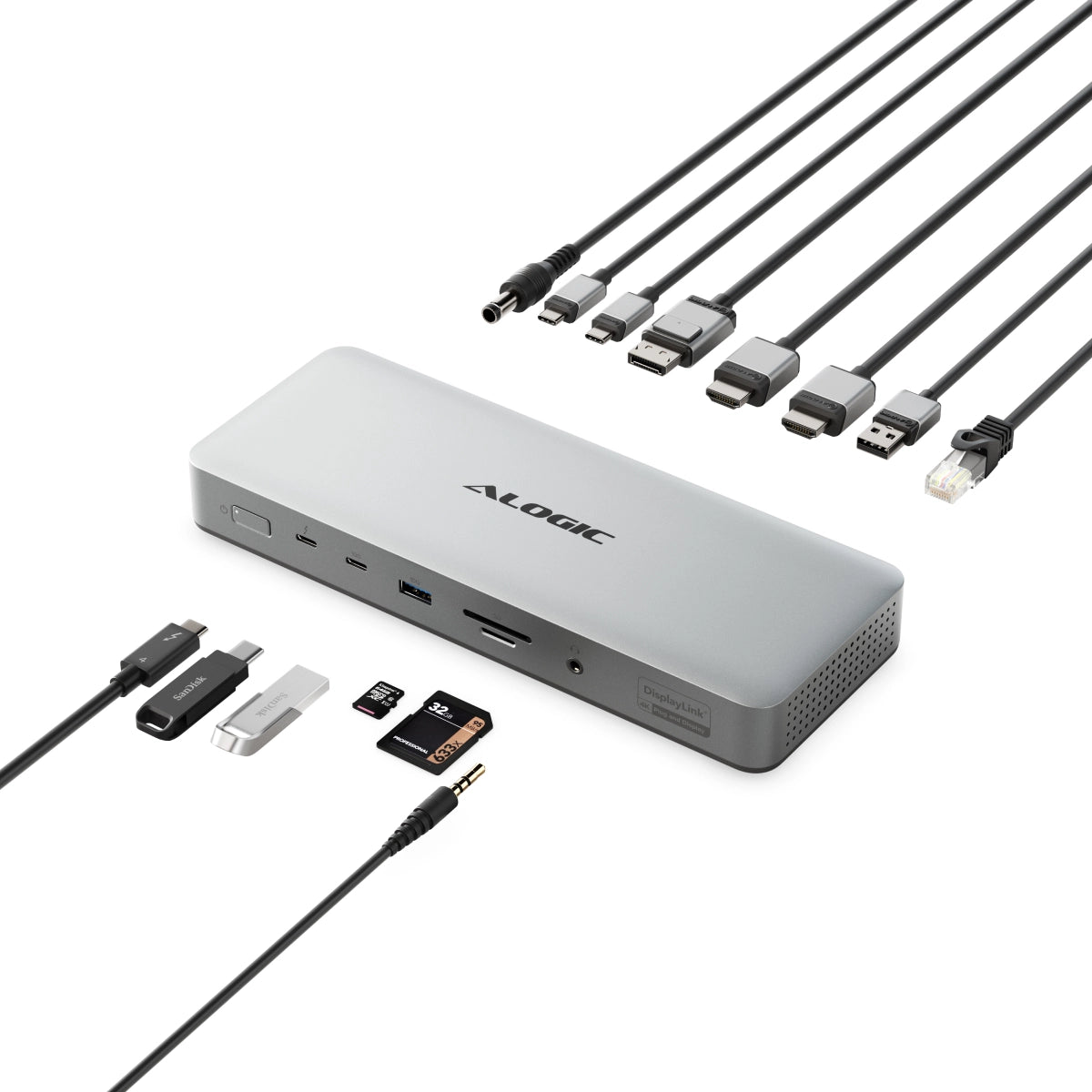

Universal All-in-One Connectivity

The DU4 docking station provides universal compatibility and works with all Windows, Mac and Chromebook computers and laptops.

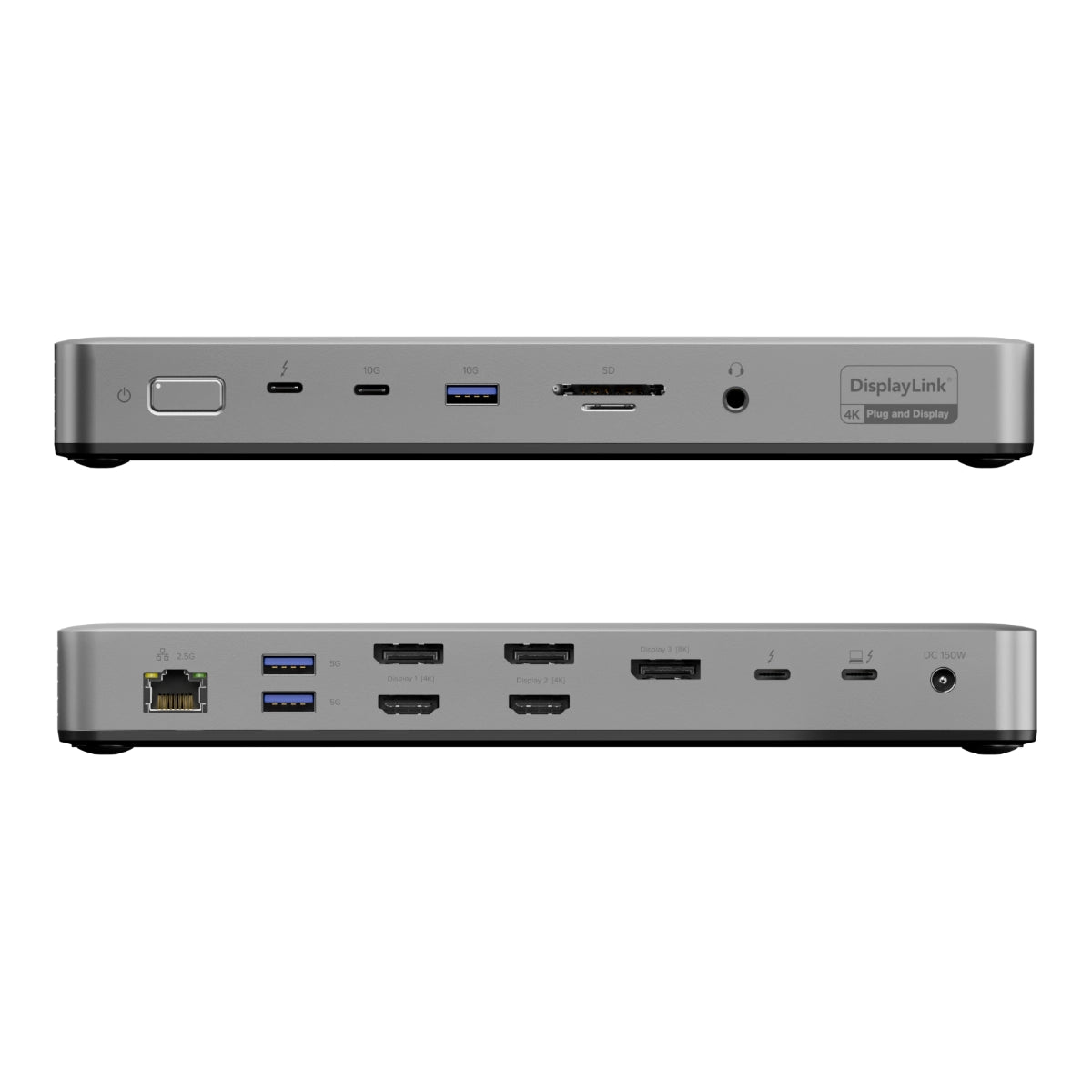

In addition to supporting up to four external displays, the dock provides ample connections for all other standard peripherals including:

  • 2 x Thunderbolt 4 downstream ports (40Gbps / video output capable)
  • 2 x HDMI video outputs
  • 3 x DisplayPort video outputs
  • 1 x USB-C 3.2 Gen 2 (10G)
  • 1 x USB-A 3.2 Gen 2 (10G)
  • 2 x USB-A 3.2 Gen 1 (5G)
  • 2 x USB-A 2.0 (480M)
  • 2.5 Gigabit Ethernet
  • Combo Headphone/Microphone Jack (384 kHz)
  • SD and Micro SD Card Reader (SD 4.0 / UHS-II - 312Mbps)

Easy Deployment

Allowing all modern USB-C equipped or older USB-A† computers to be connected to a minimum of two displays, this dock enables IT professionals and organisations to deploy the DU4 docking station as a single solution across all users.

The DU4 dock helps removes clutter and can power statically assigned workspaces and flexible hot desks in any organisation.

Lock slots allow the dock to be secured when used in shared workspaces.

† Requires a USB-C to A adapter or cable – available separately.

thunderbolt-3
thunderbolt-4
Power Plus

The dock features a 150W power adapter featuring GaN technology for powerful and efficient operation.

As well as powering the dock and all connected peripheral devices, the dock can provide up to a huge 96W of power to the connected laptop – enough to charge all but the most power hungry machines.

x

Frequently Asked Questions

General

Will this device work with my current computer that has USB-A, USB-C or Thunderbolt ports?
Yes! This product is compatible with all computers including those with USB-A and non-Thunderbolt USB-C ports. A USB-C to USB-A cable or adapter is required to connect the dock to a USB-A ports on a computer (not included; available separately).

Note that the dock is limited to 2x HDMI or DisplayPort video outputs when connected to a USB-A port on a computer.

Maximum resolutions for the different outputs vary depending on the capabilities of the connected computer. Guidance on achievable resolutions can be found in the resolution support table in the specifications for the product.
Can I charge my computer with this device?
This docking station can provide power to charge the connected laptop up to 96W maximum.

96W is sufficient to charge most laptops that are available. There are a few mobile workstation and gaming type laptops however that require more than 96W of power to charge reliably; mainly those that include a dedicated graphics processor (GPU) separate to the processor.

If in doubt as to whether more power is required, please check the power output of the power adapter that was supplied with the computer. If the power adapter is over 100W in size, it should also be connected to the laptop while the laptop is connected to the docking station.
What maximum resolution and refresh rate will my computer display with this device?
Maximum resolutions for the different outputs vary depending on the capabilities of the connected computer. Guidance on achievable resolutions can be found in the resolution support table in the specifications for the product.
Specifications
  • Part No.: TB4DU4


Physical Characteristics

  • Product Dimensions: 224 x 85 x 28mm (W x D x H)
  • Colour: Space Grey and Black
  • Weight (product): 600g
  • Materials: Aluminium plus ABS
  • Warranty: 2 Years
  • Output: 2x Thunderbolt 4 Downstream Ports) 40Gbps | 1x 8K / 2x 4K 60Hz Max | 1x DisplayPort (DP1.4) | 2x HDMI + DisplayPort Combo Ports 2x 4K 60Hz Max | 1x USB-C 3.2 Gen 2 (10G) | 1x USB-A 3.2 Gen 2 (10G) | 2x USB-A 3.2 Gen 1 (5G) | 1x 3.5mm Combo Audio / Microphone Jack (384kHz) | 1x RJ45 Ethernet 2.5Gbps | 1x SD Card Reader (SD 4.0) | 1x Micro SD Card Reader (SD 4.0 / UHS-II - 312Mbps)
  • Inputs: 1 x Thunderbolt 4 port for connection to a computer
    May be used with computers that don’t support Thunderbolt (up to 3 video outputs), or with a USB-C to A adapter to connect to older computers (up to 2 video outputs)
  • Power: Supplied with 150W power adapter and 4x mains power leads to suit AU/NZ, EU, UK and US power outlets.
    Input Voltage: 100-240VAC
    Mains Supply Frequency: 50-60 Hz
    Docking station provides up to 96W of power to connected hosts.
  • Video Resolution: Up to 4x 4K UHD independent video outputs dependent on the capabilities of the connected computer
    *See resolution support tables below for maximum outputs for computers with differing capabilities
  • Audio Support: Analogue audio line/microphone in/out
  • Package Includes: 1 x DU4 Docking Station, 1 x 80cm Thunderbolt 4 USB-C Cable, 1 x 150W Power Adapter, 4 x 1m Power Cables (AU/EU/UK/US) 1, x User Manual
  • Device Compatibility: Windows, MacOS, ChromeOS Computers
  • Compliance: FCC, CE, RoHS
  • Barcode (EAN): 9350784101211
