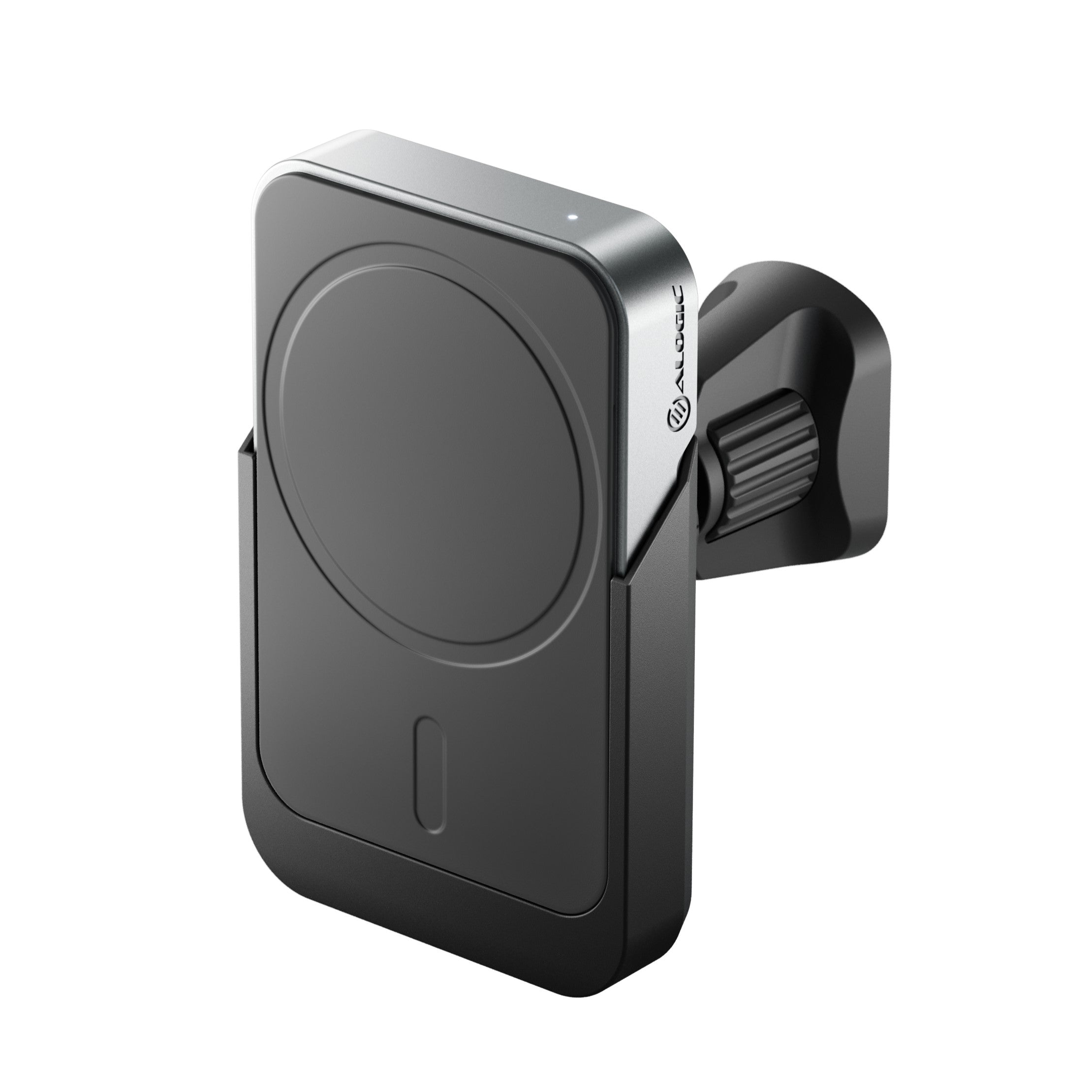

Matrix Universal Magnetic Car Charger with Air Vent Mount

Follow the steps below to secure the Matrix Air Vent Mount to your vehicle:

Loosen and remove the nut on the rear of the car mount. Place the nut over the ball of the air vent mount, then click the ball into the back of the car mount.
Tighting the nut to secure the two parts together.
Rotate the dial on the air vent mount counter-clockwise to extend the hook.
Insert the hook into your airvent, and rotate the dial clockwise to secure the hook.



Note, this product is not compatible with many round air vent styles. See image above.

We recommend using a standalone car charger with at least 20W with the Matrix Car Charger rather than any inbuilt USB charging ports. These often do not provide enough power for Matrix to charge at maximum speed.
Our 30W USB-C + USB-A Rapid Power Car Charger is a great way to power a Matrix Car Charger and another accessory.

The Matrix Car Charger can connect to the Matrix Power Bank.
Simply slot your power bank into the car mount to recharge your power bank at the same time as your phone, without the hassle of dealing with cables.

The Matrix 2/3-in-1 Magnetic Charging Docks and Wireless Car Charger include Wireless Charging Pads for use with the dock/car mount.

This wireless charging pad is a compact, 15W MagSafe-compatible Qi charger and can be used slotted into the dock/car mount, or by itself if plugged into a USB-C power source.

The Matrix 5,000mAh Wireless Power Bank has two additional features:

1. A 5,000mAh battery to recharge devices without a power source
2. The ability to charge other devices using via its USB-C port, using battery power.

So, while the charging pad can only charge one MagSafe-compatible device and needs to be connected to a power source (USB-C or a Matrix dock), the Power Bank can provide on-the-go charging without being plugged in.

No, the Matrix 5,000mAh Wireless Power Bank must be purchased separately from the Car Charger and Magnetic Charging Dock at this time.

Yes, although you will need to provide your own USB-C to Lightning cable.

WirelessMatrix wireless chargers are compatible with any Android phone that supports Qi wireless charging.
They can deliver power at speeds up to 15W.
Almost all modern Android phones that support wireless charging use Qi, and can charge with Matrix.

This includes:

Samsung Galaxy S7 or later
Samsung Note 5 or later
Samsung Galaxy Z/Flip and Fold
Google Pixel 3 or later
To use a Qi-charging phone with a Matrix magnetic charger, you will need to attach the included Magnetic Support Ring onto the back of your phone or case.
To make this as easy as possible, Matrix chargers include an alignment tool with measurements for the most popular Android phones, to ensure the ring correctly aligns your phone to its optimal charging position.
The Matrix Magnetic Charging Dock also features a second, flat Qi-charging cradle which can charge a Qi-compatible phone at a speed of 5W.
Wired

The Matrix Wireless Power Bank and Magnetic Charging Dock also support 7.5W wired charging over a USB-C cable for phones that do not support wireless charging.

Like other MagSafe-compatible chargers, Matrix are designed to work with phones using either:

a. MagSafe-compatible cases or;
b. Cases less than 4mm thick
Using a case thicker than 4mm without in-built MagSafe-compatibility is likely to interfere with wireless charging and your phone's adherence to the carger.
Attaching the Magnetic Ring included with Matrix Products to your case may improve magnetic and charging reliability, however this is not recommended for cases with metal components, as these may overheat during charging.

To install the magnetic ring included with Matrix products, you can follow the included instructions or this step-by-step visual guide we've prepared (guide begins halfway down the page).
